Just like that, you’ve created your first linear weld!

After you save the weld you’ve just created, create a new playlist with this part. These playlists are similar to what you make on a music app like Spotify. They are meant to cue the different parts you want to run on your Cobot Welder, and they start once you hit play on the operator box.

You can now watch as your robot flawlessly performs the weld you’ve just programmed!

Top Tip: As you noticed, you don’t have to program the “approach” or “exit” point like you do with other welding robots because we have programmed those for you. All you have to do is teach the start and end point of the weld itself.

1. Start by positioning the robot at the beginning of your radial weld, then hit the blue button to save this starting point.
2. For your second point, move the robot to the midpoint of your circle and, again, click the blue button.
3. Finally, move it to the end of the radius and hit the blue button for the third time.

Now, you have your three points defining your radial weld! After setting these points, hit "save" on your device. Now, all that’s left is hit "play" on your operator box. Your robot will carry out the radial weld as per your program. A perfectly executed radial weld, done with ease!

Top Tip: If you need to make a full circular weld, click here to find tips to make a radial weld into a full circle.

Once you’re content with the height, save that point by clicking the blue button.

You can add as many of these sequential moves as needed. Once the air moves are set, you can go ahead and set up your linear weld.

Once you’re done with this, don’t forget to hit "Save" on your device to secure these settings. Now, hit "Play" to see it in action. The robot will perform the air moves sequence to avoid any obstruction before it begins the linear weld.

To start the sequence, just hit "Play". The robot will run the parts as they are listed in the playlist. Without going back to the app, you can simply press "Play" again, and it will proceed to run the next part of the playlist.

You can even have the parts auto-play one after the other using the "Auto-Play" icon.

This playlist functionality provides the flexibility to have one or one hundred parts in your playlist, bringing convenience and efficiency to your production process!

But what if you want to alter the weld settings or processes?

1. Click on the parameter you want to change.
2. Let’s consider "Wire Feed Speed". You can simply adjust it to your preferred value, let’s say "500".
3. The same applies to other parameters such as "Travel Speed". If you desire a weaving pattern, toggle the "Weave" option to "On".
4. Remember to hit "Save" once you’re done.

Next time you execute the weld, it will incorporate these new settings. This adaptive feature provides a dynamic welding experience, ensuring optimal performance and precision.

For added flexibility, you can also insert another weld move or sequence. By clicking on the"Wand"icon at the top right of the screen, you’ll see little green"+"icons that allow you to insert additional elements.

Let’s say you want to add an"Air Move"between 2 points. Simply click on the"+" icon and move the robot to the desired position. With this, you’ve successfully added an"Air Move"between your 2 existing points.

Top Tip: Adjusting welding parameters can help improve your weld quality and speed. If you want to learn more about how you can minimize or eliminate common weld issues, visit this page: Troubleshoot Common Welding Issues.

The system will prompt you to insert an "Air Move" between the points to ensure the safe movement of the robot. Simply input this Air Move point.

Upon hitting "Play", you’ll see the robot perform the original sequence of welds, move via the Air Move point, and then execute the same sequence at the new location. By using the pattern function, you’re able to multiply your productivity without having to program each part separately.

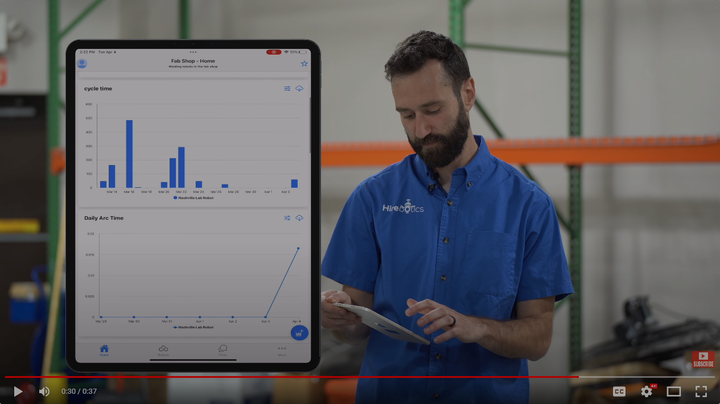

Beacon provides the flexibility to create custom graphs tailored to your needs. You can track a range of variables such as cycle time, the number of parts welded per minute or per hour, and consumption data like the amount of gas and wire used.

This powerful feature allows for real-time monitoring and precise control of your welding processes, helping optimize efficiency and productivity.

For instance, if you need help setting up a linear weld, just type "linear weld" into the search bar. Click on the most relevant result, and you’ll find a detailed video tutorial from our team.

However, if the library does not answer your queries, you can"Send us a message." Once you use this feature, you can expect a response from an engineer inas little as two minutes.Our team is well-equipped to answer a range of questions, from software-related inquiries to welding process queries. This means you always have expert help on-hand, ensuring your operations run smoothly.
